.RADIOLINK TS100 GPS

24,800Ft

Raktáron

Nagyobb kép

Specifications:

Positional Accuracy: Up to 50 centimeters with quad-mode / 250 centimeters with Single Mode
Protocol: Default NMEA. But, when connecting the TS100 v2.0 to the flight controller, it will recognize the type of flight controller and turn the protocol to the same protocol as the flight controller automatically when connecting the TS100 v2.0 to the flight controller, when the TS100 v2.0 disconnects with the flight controller, the protocol will turn back to the default NMEA.
Velocity Precision: 0.1m/s
Max Height: 50000m
Max Speed: 515m/s
Max Acceleration: 4G
Max Update Rate: 20Hz
Sensitivity: Tracking & Nav.：-167dBm Acquisition：-163dBm Cold start：-151dBm Hot start：-159dBm
Activation Period: Cold start: 26s Hot start: 1s
Power Supply: Voltage: 5±5%VDC Current: 50-100mA

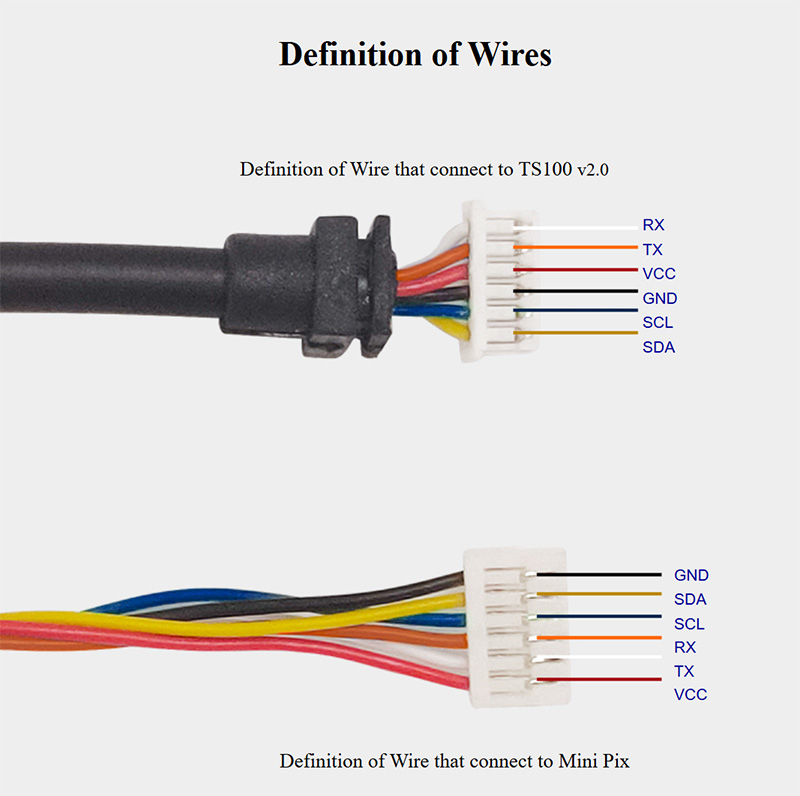

Ports: GPS: UART port with baud rate 38.4K Geomagnetic: I2C port

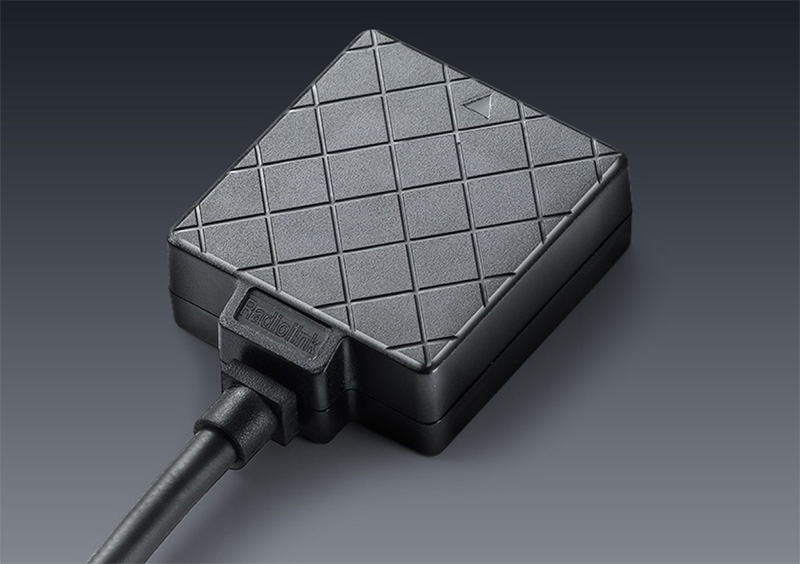

M10N GPS - TS100 v2.0
Dual Anti-interference Technology

Worry-free of UAV High-power Image Transmission, High-Voltage Lines, or Other Strong Signal Interference

50 centimeters Positioning Accuracy
Two-stage SAWF (Surface acoustic wave filter) from Murata

Positioning 20 Satellites in 6 Seconds at Open Ground
Triple-frequency Quad satellite system

Super Station-keeping Capability Even at Valley Bottom
2.5dbI High Gain and Selectivity Ceramic Chip Antennas

Dual Anti-interference Technology

De-interference: Two-stage filtering with 78db attenuation effectively filters out-of-band interference.
Anti-interference: In-band input 1dB compression point -3dBm high linear LNA can minimize the impact of even a small amount of interference signals that pass the filter.
Effectively resist strong signal interference, such as high-power image transmission on drones, high-voltage lines, etc.

Excellent Performance

The pre-LNA low-loss circuit design that exactly matches the ceramic chip antennas has enhanced the capability to capture extremely weak signals even though interfered with by an ideal filter.
Optimal circuit layout ensures TS100 v2.0 can seize very weak signals and input interference is effectively suppressed at the same time.

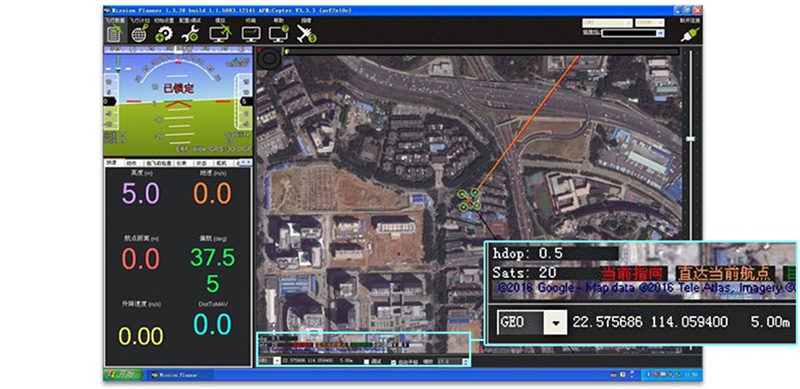

50 centimeters positioning accuracy, positioning 20 satellites in 6 seconds at open ground, and station-keeping capability even at the valley bottom.
Triple-frequency: 1561±1MHz, 1575±1MHz, 1602～1610MHz.
BD1, GPS/L1, Galileo/E1, GLONASS/G1, and quad satellite system operation at the same time are available.

Protocol: Default NMEA But, when connecting the TS100 v2.0 to the flight controller, it will recognize the type of flight controller and turn the protocol to the same protocol as the flight controller automatically when connecting the TS100 v2.0 to the flight controller, when the TS100 v2.0 disconnects with the flight controller, the protocol will turn back to the default NMEA.
Baud rate: 38.4K
Voltage: 5±5%VDC
Current: 50-100mA

Top Configuration

GPS decoder chip: Radiolink TS100, with Ublox M10050, is much better than a single GNSS 7N.
Built-in high-precision electronic compass IST8310 (I2C port).
Antenna: 2.5dbI high gain and selectivity ceramic chip antennas.
Double Filter: two-stage SAWF (Surface acoustic wave filter) from Murata.

Worry-free Practice

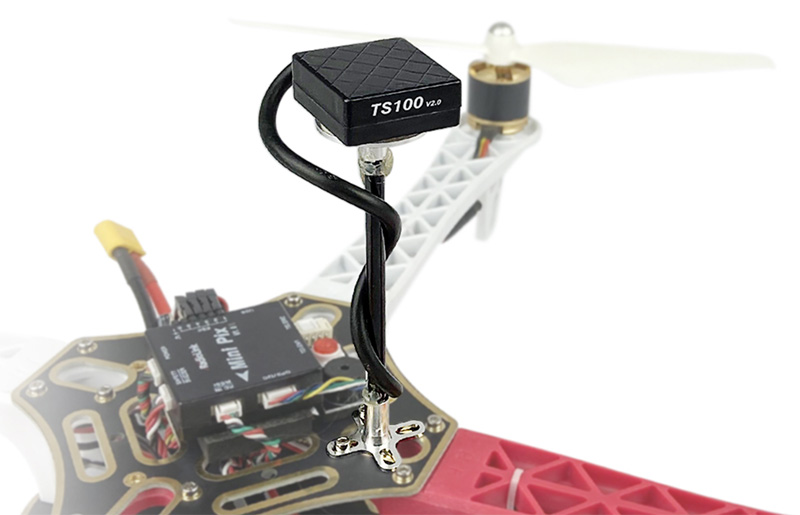

Pilots can practice with Super Simple Modes when TS100 v2.0 works with Radiolink mini flight controller Mini Pix.
Best choice for racing drone beginner.

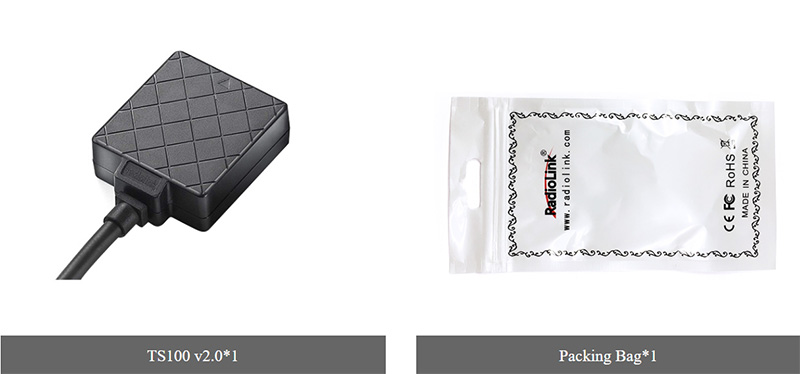

SE100 Packing List
